When sourcing materials, understanding the nuances between different grades of stainless steel is paramount. Stainless steel is a versatile alloy known for its corrosion resistance, durability, and aesthetic appeal. However, not all stainless steel is created equal. The choice between common grades such as 304 and 316 stainless steel can significantly impact the performance and lifespan of your components or structures, especially in demanding environments. Let’s explore the differences between these two popular stainless steel options.
What is Stainless Steel?
Before comparing specific grades, it's helpful to understand what stainless steel is. It's primarily an iron alloy with a minimum of 10.5% chromium. This chromium content creates a passive layer on the surface, known as the passive film, which provides the material with characteristic resistance to corrosion and rust. Different grades of stainless steel have unique compositions and properties, making them suitable for various applications. 304 stainless steel and 316 stainless steel are the most widely used austenitic grades.
Understanding 304 Stainless Steel
304 stainless steel is arguably the most common and widely used stainless steel material globally. It's often referred to as 18/8 stainless steel because its composition typically includes approximately 18% chromium and 8% nickel.
Composition of 304 Stainless Steel
The primary components of 304 stainless steel are:
Chromium (approx. 18%)
Nickel (approx. 8%)
Iron (balance)
Small amounts of Carbon, Manganese, Silicon, Phosphorus, and Sulfur.
This composition provides good corrosion resistance to many chemical corrosives and resistance to ordinary rusting.
Properties and Common Uses of 304 SS
SS 304 stainless steel offers a good balance of properties:
Good corrosion resistance in atmospheric environments and mild chemicals.
Excellent formability and weldability.
Good strength and durability.
Attractive appearance.
Due to these properties and its relative affordability, 304 stainless steel is found in numerous applications:
Kitchen sinks and appliances
Food processing equipment
Architectural panels and trim
Chemical containers
Heat exchangers
When to Choose 304 Stainless Steel
Choose 304 stainless steel when your application requires good general corrosion resistance, formability, and strength, and will not be exposed to harsh, corrosive environments, particularly those involving chlorides. It's an excellent general-purpose stainless material for many common industrial and consumer products.

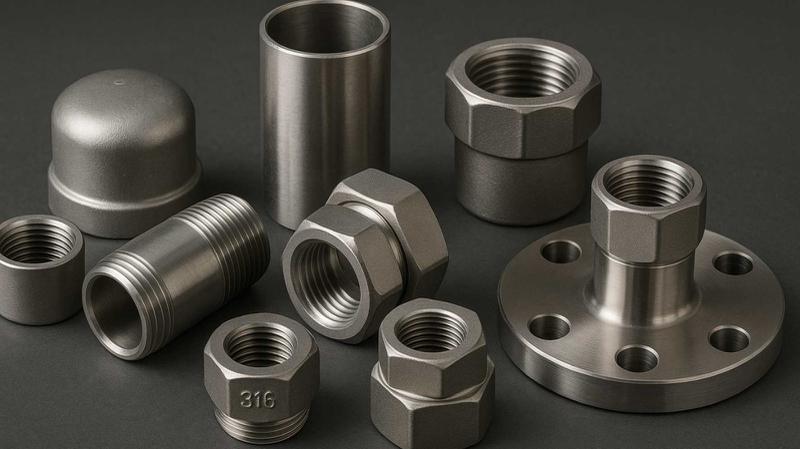

Understanding 316 Stainless Steel
316 stainless steel is the second most common stainless steel grade. It shares many characteristics with 304 but offers significantly enhanced corrosion resistance, especially in chloride-rich environments.
Composition of 316 Stainless Steel
The key difference in the composition of 316 stainless steel compared to 304 is the addition of molybdenum:
Chromium (approx. 16-18%)
Nickel (approx. 10-14%)
Molybdenum (approx. 2-3%)
Iron (balance)
Small amounts of Carbon, Manganese, Silicon, Phosphorus, and Sulfur.
2-3% molybdenum gives 316 stainless steel superior resistance to pitting and crevice corrosion, particularly in saline or acidic environments.
Properties and Common Uses of 316 SS
316 stainless steel builds upon the properties of 304, offering:
Superior corrosion resistance, especially against chlorides, acids, and saline solutions.
Higher resistance to pitting and crevice corrosion.
Good strength and durability, similar to 304.
Excellent formability and weldability.
These enhanced properties make 316 stainless steel the preferred choice for more demanding applications:
Marine environments (saltwater exposure)
Chemical processing equipment
Pharmaceutical equipment
Medical implants
Food processing in highly acidic or saline conditions
Outdoor architectural applications in coastal areas
When to Choose 316 Stainless Steel
Choose 316 stainless steel when your application will be exposed to harsh, corrosive conditions, especially those involving chlorides, saltwater, or strong acids. Its enhanced resistance makes it a more durable and reliable choice in these demanding environments, the price justifying the higher 316 stainless steel.

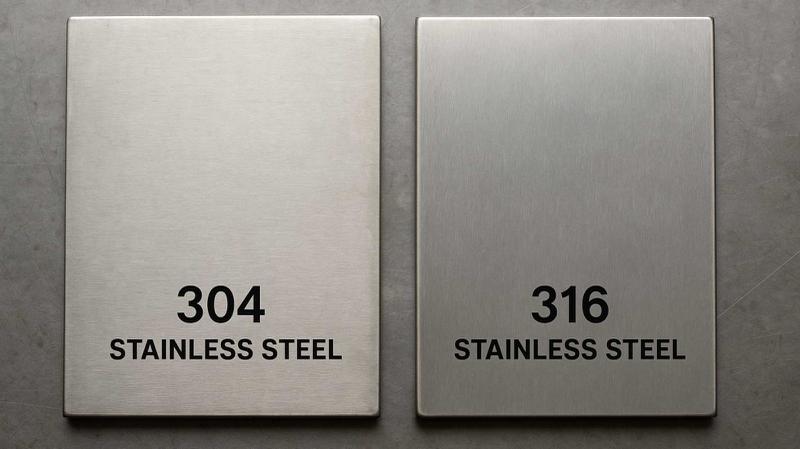

The Key Differences: 304 vs 316 Stainless Steel
While both are austenitic stainless steel grades, the primary distinction lies in their composition and the resulting corrosion resistance.
Chemical Composition
The most significant difference is the addition of molybdenum in 316 stainless steel. This small addition dramatically improves its resistance to specific types of corrosion.
Corrosion Resistance
This is where 316 stainless steel truly shines over 304. 304 stainless steel performs well in many environments but is susceptible to pitting and crevice corrosion in the presence of chlorides. 316 stainless steel, with its molybdenum content, offers much higher resistance to these forms of attack, making it ideal for marine, chemical, and coastal applications.
Strength and Heat Resistance
Both grades offer similar mechanical properties in terms of strength and toughness. They also have comparable heat resistance for many common applications, though slight differences may exist at very high temperatures or in specific corrosive atmospheres.
Cost: 304 Stainless Steel Price vs. 316 Stainless Steel Price
Generally, 316 stainless steel is higher than 304 stainless steel. This is primarily due to the addition of molybdenum and the higher nickel content typically found in 316 stainless steel. While the initial cost is higher, the extended lifespan and reduced maintenance requirements in corrosive environments can make 316 stainless steel more cost-effective in the long run for certain applications.
| Feature | 304 Stainless Steel | 316 Stainless Steel |
| Composition | ~18% Cr, ~8% Ni | ~16-18% Cr, ~10-14% Ni, 2-3% Mo |
| Corrosion Resistance. | Good (General) | Excellent (esp. chlorides) |
| Pitting/Crevice | Fair (Susceptible to chlorides) | Very Good (Resistant) |
| Marine Use | Not Recommended | Recommended |
| Cost | Lower | Higher |
Choosing Between 304 and 316 for Your Business
Selecting between 304 and 316 stainless steel depends entirely on the specific requirements of your application. Consider the following factors:
-
Environment: Will the material be exposed to chlorides, saltwater, acids, or harsh chemicals? If so, 316 stainless steel is likely the better choice despite its higher cost. For milder environments, 304 stainless steel is often sufficient and more cost-effective.
-
Application: What is the intended use? Food processing, medical implants, or marine components demand the superior resistance of 316. General architectural trim, indoor equipment, and non-critical components are typically made from 304 stainless steel.
-
Budget: While the 304 stainless steel price is lower upfront, consider the total cost of ownership, including potential replacement or repair costs if the material fails prematurely in a corrosive environment.
-
Lifespan: How long does the component need to last in its intended environment? 316 stainless steel offers greater longevity in corrosive conditions.
Understanding these points will lead you to select the appropriate SS material for your business needs.
Conclusion
Both 304 stainless steel and 316 stainless steel are excellent stainless steel material options, each with its strengths. 304 stainless steel is a versatile, cost-effective choice for many general applications, offering good resistance to corrosion. In aggressive environments, especially those with chlorides, 316 stainless steel provides superior resistance due to its molybdenum content, which justifies its higher price.
Choosing between 304 and 316 stainless steel is crucial for ensuring the performance, durability, and economic viability of your projects. Businesses can confidently select the SS material that best meets their specific requirements by understanding the key differences in their composition, properties, and cost.
